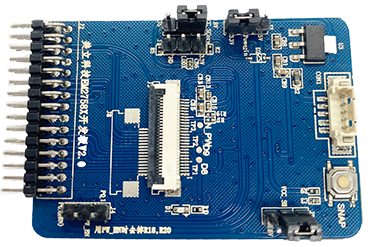

EM258X开发板
DVP接口:
可以接MI2010,OV7725,OV5640,OV2640,OV7725,MI3120,MI1310等多颗Sensor;
------------------------------------------------------------------------------------------------------------
Video In
- Compliant to USB Video Class
- Support snapshot button and still image capture
- Flexible Video Input Port supports various CMOS sensors - Provide clock to CMOS sensor
- Support CCIR-656 YUV with embedded sync
- Convert Bayer RGB to YUV color space
- Black Clamping
- Gamma Correction
- Gain and offset adjustment in RGB space
- 9-window image statistics collection for AE and AWB
- Defect pixel compensation
- Gain and offset adjustment in YUV space
- Sharpness enhancement
- Random ratio down scaler
- Anti-noise filter to reduce video noise
Audio In
- Compliant to USB Audio Class
- Support in (microphone) streaming
- Support Linear PCM-16 format
- Support stereo and mono audio
- Support audio sample rate from 8 KHz to 48 KHz
General
- USB 2.0 and 1.1 compliant
- Embedded turbo 8051 microcontroller runs 2 to 4 clocks per instruction - Many general I/O ports controlled by the 8051
- Support 2 timers in the 8051
- Support basic and extended interrupts in the 8051
- Support UART with baud rates upto 3Mbit/sec in the 8051
- Fully customizable microcode in external EEPROM, sized 12 KB
- Customizable Vendor ID, Product ID, Vendor String, Product String
- 2 sets of 2-wire command serial bus to peripheral devices
- USB suspend output to peripheral devices
- Built-in 1.8V regulator for single supply voltage
- 0.18 micron, 1.8V core, 3.3V I/O CMOS process
- 48 pin LQFP packages
