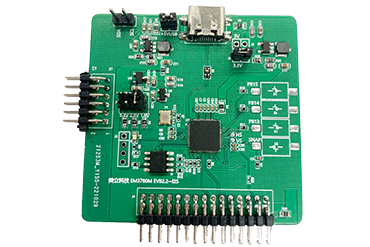

EM378X开发板

 Compliant to USB1.1 Video Class

 Support snapshot button and stillimage capture
 Support RAW/YUV output CMOSSensor at 8/10 bit data bus
 Provide clockto CMOS sensor
 MJPEG payload

 Support optional DRI and RSTm makers to minimize damaged image area caused by JPEG decoding error.

 Image and Colo rProcessing

•   Black level clamping

•   Bi-cubic lens shading correction

•   WB offset/gain adjustment

•   Dynamic defect/bright pixels elimination based on adjacent pixels statistics

•   Adaptive Demosaicing algorithm capable to extract the maximum detail from high

  contrast scenes and also minimize false color along edges.

•   Edge enhancement

•   Noise suppression

•   Improved Histogram Equalization for better contrast enhancement

•   Luminance Histogram for improving AE performance

•   Color matrix for color correction and color space conversion

•   Brightness/Contrast/Hue/Saturation adjustment

•   AE/AF/AWB windows statistics

•   Programmable Gamma table

  General

•   USB2.0and1.1compliant

•   Embedded RISC 32Bit Micro Controller

•   General I/O ports controlled by MicroController

•   Support UART with baudrates upto 3M bit/sec in the Micro Controller

•   Fully customizable microcode in external SPI FLASH,32KByte

•   Customizable VendorID,ProductID,VendorString,ProductString

•   2sets of 2-wire command serialbus to peripheral devices

•   Input crystal frequency 12Mhz

  MIPI Receiver

   Integrated MIPI D-PHY
   8/10/12-bits raw,16-bit YUYV


•  Embedded data capture

  Package

  •   56 pin LQFN packages

  •   1.2V core power

  •   1.8V,2.5V or 3.3VI/O for Sensor Interface
